SolarEdge USE11400H-USSKBEZ8 Home Hub Inverter
Inverters and Optimizers must be purchased together in a 1:15 ratio based on inverter size.
3.8kW-11.4kW Adjustable, 12.5kW Backup, 240VAC, 2 Unfused Inputs, Ground-Fault/Arc-Fault Protection, RS485, Ethernet, AC-RSD, w/ PCS, RGM and Consumption Meter, UL1741SA/SB, USA Built
 |
| This item ships free within the 48 contiguous states. |
NOTE: Effective immediately, SolarEdge mandates that Inverters be purchased together with Optimizers in a 1:15 ratio based on inverter size. Individual Inverter purchases are no longer permitted until further notice.
SolarEdge USE11400H-USSKBEZ8 Home Hub Inverter, 3.8kW-11.4kW Adjustable, 12.5kW Backup, 240VAC, 2 Unfused Inputs, Ground-Fault/Arc-Fault Protection, RS485, Ethernet, AC-RSD, w/ PCS, RGM and Consumption Meter, UL1741SA/SB, USA Built
SolarEdge's USA-manufactured residential single phase inverter offering adjustable power classes for storage and backup applications

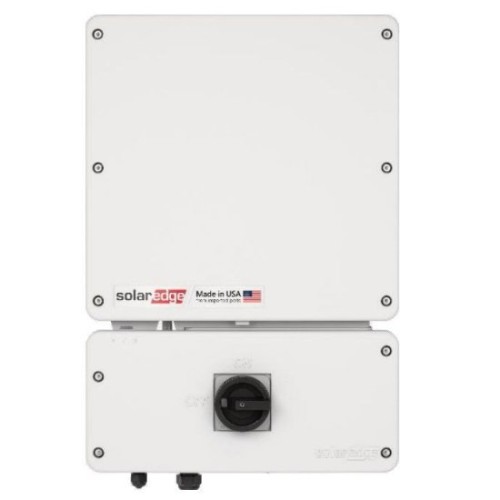

The SolarEdge USE11400H-USSKBEZ8 Home Hub Inverter is a U.S. manufactured, next-generation residential hybrid inverter designed for solar, storage, and whole-home backup applications across North America. As part of the SolarEdge Home Hub family, this model features a single part number that supports all power classes from 3.8 kW to 11.4 kW, dramatically simplifying ordering, logistics, system design, and installation.
Engineered as the central intelligence of the SolarEdge Home ecosystem, the USE11400H-USSKBEZ8 manages PV production, battery storage, backup power during outages, EV charging, and a full suite of smart-energy devices. With record-breaking 99% weighted efficiency and support for up to 200% DC oversizing, it maximizes energy harvest and system performance in any residential setup.
NOTE: The Home Hub inverter can also be installed without the Backup Interface, providing an upgradable system to be deployed presently, allowing you to add the Backup Interface and Batteries at a later date when needed.
Benefits
- Peace of Mind - Meet rising outages due to utility and weather challenges
- Maximize Solar Energy - Store unused solar in a battery to continually meet home demand and increase energy independence
- Whole Home Backup - 200A backup interface powers whole home or selected loads
- Modular design - future ready with optional upgrades to DC-couple storage for full or partial home backup, built-in consumption monitoring and direct connection to the SolarEdge smart EV charger
Features
- Hybrid solar + storage + backup - Controls PV, batteries, and backup operation, including the ability to start high-LRA HVAC systems during outages (with required hardware and firmware).
- Exceptional efficiency - Achieves 99% weighted efficiency, enabling superior energy production and system ROI.
- Single-SKU design for all power classes - One unified configuration streamlines ordering, inventory, and installation across the entire Home Hub lineup.
- High DC oversizing capability - Supports up to 200% DC oversizing, allowing larger PV arrays without additional inverters.
- Seamless ecosystem integration - Connects effortlessly to the SolarEdge Home Network, enabling smooth communication with batteries, EV chargers, smart switches, and load controllers.
- Advanced monitoring - Provides module-level visibility, battery status, PV production data, and self-consumption insights.
- Built-in Wi-Fi - Integrated antenna improves communication reliability and simplifies setup.
- Fast, simple installation - Lightweight design, reduced commissioning time, and installer-friendly configuration.
- Indoor/outdoor durability - NEMA 4X-rated enclosure supports flexible installation locations.
- Scalable for future needs - Easily expands with additional SolarEdge Home components as homeowner energy demands grow.
- Safety and compliance - Includes arc-fault protection and rapid shutdown (690.11 & 690.12), and complies with UL 9540 (Ed. 3) for integration with compatible batteries.
- High reliability - Built with automotive-grade components for long-term performance and durability.
- Revenue-grade metering - Embedded ANSI C12.20 Class 0.5 production data ensures accurate energy reporting.
- Power Control System (PCS) - Allows installation of larger systems while avoiding costly main-panel upgrades.
The Home Hub Solution Components
- BI-EUSGN-03 Backup Interface - (Optional - Required only for whole house backup)
- (2) SE-ACT-0750-200 CT’s - (Optional - Required only if critical loads panel is used instead of whole house backup)
- UBAT-10K1PS0B-03 Energy Bank Battery (Optional)
- BAT-10K1PS0B-02 Energy Bank Battery (Optional)
- BAT-10K1PS0B-01 Energy Bank Battery (Optional)
- SE-EV-SA-KIT-LJ40P Smart EV Charger (Optional)
- S440 Power Optimizer (Purchase Required)
- U650 Power Optimizer (Purchase Required)
- U650B Power Optimizer (Purchase Required)
Home Hub Inverter Wiring Overview
Home Hub Inverter with Prism Technology: Backup Interface Wiring
