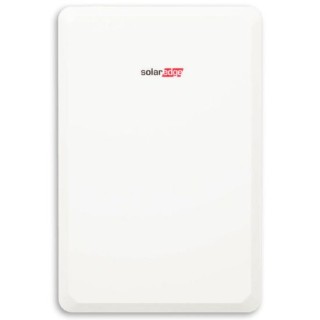

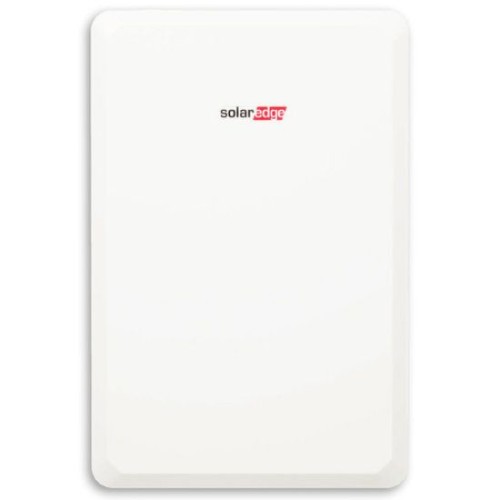

SolarEdge UBAT-10K1PS0B-03 Energy Bank Battery

SolarEdge UBAT-10K1PS0B-03 Energy Bank Battery, 9.7kWh Usable Capacity, NMC, 5kW Continuous, 7.5kW Peak, Wall or Floor Mount, NEMA 3R (Indoor/Outdoor), UL9540, Domestic Content

The DC Edge: More Power—Hour After Hour with the Market’s Most Efficient Solar+Storage Platform - Now with Domestic Content

With a unique, DC-coupled technology, the SolarEdgeUBAT-10K1PS0B-03 Energy Bank Battery maximizes solar usage year-round and during an outage – requiring only one power conversion vs. three conversions with legacy AC-coupled technology. It also has the ability to handle DC oversizing up to 200%, delivering superior performance and flexbility in system design. The battery and solar array are protected by a single breaker which reduces the amount of costly main panel upgrades needed for a backup system. The UBAT-10K1PS0B-03 Energy Bank is based on Li-ion NMC and is compliant with advanced safety ratings, such as UL1642, UL9540A (meaning you can install indoors, outdoors on the wall or floor), UL1973 and UN38.3.

When it comes to backup power, the Home Battery truly stands out. Each unit provides 9.7 kWh of storage, enabling critical appliances—from HVAC systems to pool pumps—to receive continuous power during grid interruptions. With a continuous output of 5 kW (7.5 kW peak) and features like Weather Guard that automatically charge the battery ahead of severe weather, you can trust that your home will remain protected when it matters most.

For regions with time-of-use energy pricing, such as California’s NEM 3.0 market, the SolarEdge Home Battery can also be configured as a rate saver. By storing energy during the day and using it during peak pricing hours in the evening, homeowners can achieve significant cost savings—up to 38% in upfront hardware costs compared to traditional backup systems.

Safety and reliability are also top priorities. The SolarEdge Home Battery is among the first residential batteries to pass the stringent UL9540A unit-level fire safety test, making it safe for indoor installation. Coupled with a warranty that isn’t limited by charge cycles, this system offers long-term peace of mind alongside exceptional performance.

The UBAT-10K1PS0B-03 Energy Bank also delivers more power at less cost, thanks to an industry-leading 94.5% round-trip efficiency—system owners can maximize solar use and lower utility bills. This helps speed up homeowner payback with the exclusive ability to simultaneously charge batteries AND send energy to the grid for credits (where available). Conveniently view and manage your battery, solar, electric vehicle charging and other connected devices with one app: mySolarEdge - It’s a SnApp. You may stack up to 3 Energy Bank batteries per SolarEdge Energy Hub inverter and up to 3 Energy Hub Inverters per Backup Interface (necessary for backup power if the grid goes down), for a maximum of nine batteries, delivering up to 30.9kW of continuous backup power.

NOTE: Only compatible with an Energy Hub Inverters (sold separately) and certification is required for installation. You can find the training here: EDGE Academy

To determine how many batteries you will need to back up your home, go to the SolarEdge Estimator Tool.

Features

The DC Power Advantage

• DC-Coupled technology avoids the triple conversion penalty, generating up to 10 days of free power every year
• Industry-leading 94.5% round trip efficiency
• Stack up to three batteries on one inverter while avoiding main panel upgrades (MPUs)
• DC oversizing up to 200%

Faster, More Flexible Installation

• Faster commissioning and less wiring hassle with wireless inverter-battery communication
• Flexible installation – wall or floor, indoor or outdoor
• Decreased spacing requirements with UL9540A compliance
• Storage only (rate saver), partial, and whole home options
• Stack up to three batteries per inverter on one breaker, avoiding Main Panel Upgrades (MPUs)

More Backup When the Grid Is Off

• Run power-hungry appliances like HVACs and pool pumps with 5kW continuous power, 7.5kW peak
• Longer outage protection - 9.7kWh of storage per battery, stackable up to three per inverter
• Be ready for the storm with Weather Guard, a feature in mySolarEdge designed to automatically charge your battery when severe weather is detected
• Life continues with a record-setting, 94.5% battery roundtrip efficiency: Add multiple SolarEdge Home Batteries for even more power and extended whole home backup—use their Storage Estimator Tool to determine your backup needs
• Stay in control with the handheld ability to adjust battery reserve levels in real-time, anytime.

Our Safest Battery, Now UL9540A Tested and Optimized for NEM 3.0

• SolarEdge Home Battery is one of the first residential batteries to pass the strictest UL9540A unit level test for fire safety hazards, allowing convenient indoor installations.
  * Backup applications are subject to local regulations, require connections with the SolarEdge Home Hub Inverter – Single Phase and the SolarEdge Home Backup Interface
• SolarEdge Home Rate Saver configuration offers a battery-only solution that is ideal for time-of-use markets such as NEM 3.0 in California.
• Store energy during the day and use it during the evening when power is more expensive
• Save up to 38% in upfront hardware costs compared to systems with backup
• Faster, easier battery installation – no essential loads panel, backup system, main panel rewiring

Additional Accessories (Sold Separately)

• Floor stand kit for floor-mounted battery installations - (Optional)
• MC4 parallel branch connectors for connecting multiple batteries to each other - (Optional)
• Accelerate backup system installs while improving aesthetics by connecting the Home Hub inverter and Backup interface with the SolarEdge Home Fast Mount - (Optional)
