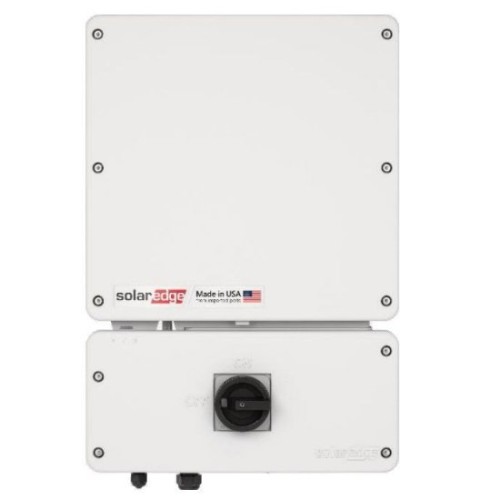

SolarEdge USE11400H-USMNBL75 Home Hub Inverter

NOTE: Effective immediately, SolarEdge mandates that Inverters be purchased together with Optimizers in a 1:15 ratio based on inverter size. Individual Inverter purchases are no longer permitted until further notice.

SolarEdge USE11400H-USMNBL75 Home Hub Inverter, 11.4kW Battery Access, 240VAC, 60 Hz, 2 Unfused Input, Ground-Fault/Arc-Fault Protection, RS485, Ethernet, with Cellular Modem and 5 Year Cell Plan, AC-RSD, w/ PCS, RGM and Consumption Meter, UL1741SA/SB, USA Built

SolarEdge's USA-manufactured residential single phase inverter offering for storage and backup applications

The USE11400H-USMNBL75 Home Hub Inverter is one of the newest offerings from SolarEdge that pairs the innovation of HD-Wave technology with the power of storage in a next generation home backup solution for higher 99% efficiency and greater flexibility. With this inverter, you will have one storage solution to back up an entire home, be ready for battery and EV charging with built-in energy monitoring and an overall flexible system to meet future energy storage needs. In addition to this, the USE11400H-USMNBL75 offers 11400W of backup power.

When you pair the SolarEdge USE11400H-USMNBL75 Home Hub Inverter with a battery and one of SolarEdge's Backup Interfaces (sold separately), you will have a DC-coupled solution that can keeps the whole home on even when the grid is down. When DC coupled with power-stacked batteries and the Backup Interface, the Home Hub Inverter supports up to 200% DC oversizing and can power part of or the entire home, up to 200A, during grid outages. While also enabling fast and simple installation, this solution eliminates the requirement for a main panel upgrade or generation panel, even when connected to multiple inverters, batteries or generators. With built-in metering providing insight into actual energy consumption and production, smart energy upgrades can be easily made to meet evolving energy needs.

Other features of the USE11400H-USMNBL75 Home Hub Inverter include improved commissioning and firmware updates through the SetApp mobile application accessed on a smartphone or tablet. The USE11400H-USMNBL75 inverter also comes standard with a built-in DC safety switch, integrated rapid shutdown, and features a standard 12-year warranty extendable to 20 or 25 years.

When using the SolarEdge Backup Interface Unit (sold separately), up to three SolarEdge inverters can be stacked for additional capacity. Each USE11400H-USMNBL75 Home Hub inverter can support up to 3 SolarEdge Energy Bank Batteries (29.1kWh total storage capacity). If all three inverters are deployed, this storage potential can be tripled.

The Backup Interface is used as an isolation device to island the system from the utility during a grid outage while providing battery backup. The SolarEdge Backup Interface BI-EUSGN comes installed with a 200A main breaker and can intercept a 200A utility feed to provide for a whole home power backup solution, when deployed with sufficient inverters and batteries.

For long duration outages, the Backup Interface also allows for generator input connection. If you integrate a generator, this will permit the system to sustain longer outages when solar resources may be limited. If the load imposed on the system during backup is greater than the inverter rating, the system will disconnect.

NOTE: The Home Hub inverter can also be installed without the Backup Interface, allowing an upgradable system to be deployed presently, allowing you to add the Backup Interface and batteries at a later date when needed.

Benefits

• Peace of Mind - Meet rising outages due to utility and weather challenges
• Maximize Solar Energy - Store unused solar in a battery to continually meet home demand and increase energy independence
• Whole Home Backup - 200A backup interface powers whole home or selected loads
• Generator Compatible - The unique ability to connect to a generator for even more power
• Modular design - future ready with optional upgrades to DC-couple storage for full or partial home backup, built-in consumption monitoring and direct connection to the SolarEdge smart EV charger

Features

• Up to 200% DC oversizing means more energy and self-consumption, less clipping, and optimized savings
• Higher efficiency of 99%: one conversion with DC vs three with AC
• Charge and discharge battery according to local times-of-use rates to keep bills low
• One app to monitor solar production, energy storage and usage
• Preselect battery charge levels in the event of unplanned outages
• With battery backup power up to 11400W
• Take advantage of ITC and local energy storage incentives
• Modular design, future ready with optional upgrades to: DC-coupled storage for full or partial home backup Built-in consumption monitoring Direct connection to the SolarEdge smart EV charger
• Small, lightweight and easy to install
• Multi-inverter, scalable storage solution
• Integrated arc fault protection and rapid shutdown for NEC 2014, 2017 and 2020, per article 690.11 and 690.12
• Embedded revenue grade production data, ANSI C12.20 Class 0.5

The Home Hub Solution Components

• BI-EUSGN-01 Backup Interface - (Optional - Required only for whole house backup)
• (2) SE-ACT-0750-200 CT’s - (Optional - Required only if critical loads panel is used instead of whole house backup)
• UBAT-10K1PS0B-03 Energy Bank Battery (Optional)
• BAT-10K1PS0B-02 Energy Bank Battery (Optional)
• BAT-10K1PS0B-01 Energy Bank Battery (Optional)
• SE-EV-SA-KIT-LJ40P Smart EV Charger (Optional)

Home Hub Inverter Wiring Overview

Home Hub Inverter with Prism Technology: Backup Interface Wiring
