Generac PWRcell RS802 SnapRS Disconnect Switch

Generac PWRcell RS802 SnapRS Disconnect Switch

In-Line Module Level Rapid Shutdown Device with MC4 Connectors, Requires Generac PWRcell Inverter and PV-Link Optimizer(s)


Item # 1410-194
(0)

Price: $41.08
Select Wire/ACH Transfer at checkout to save $1.23!
Qty: Add to Cart

Have a Question About This Product?

Indicates required information.

First Name

Last Name

Phone

Company

Email Address

Confirm Email

Subject

Message

Submit Question

Thank you for your question.
We will do our best to respond in one business day or less.

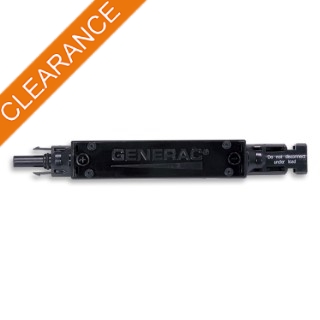

Generac PWRcell RS802 SnapRS Disconnect Switch, In-Line Module Level Rapid Shutdown Device with MC4 Connectors, Requires Generac PWRcell Inverter and PV-Link Optimizer(s)

Achieve NEC 2017/2020 Rapid Shutdown Compliance With Proprietary SnapRS In-Line Rapid Shutdown Devices.

Generac RS802 SnapRS Disconnect Switches are a simple way to satisfy rapid shutdown compliance for solar plus storage systems. Generac SnapRS are 2017/2020 NEC 690.12 compliant, don’t require any extra hardware to mount, and need no pairing or fussy digital communications.

Connect a Generac SnapRS disconnect device to the negative lead (-) of each module in the solar array for simple module-level rapid shutdown compliance. SnapRS devices isolate array voltage when a rapid shutdown is initiated at a PWRcell Inverter. When rapid shutdown is initiated, SnapRS units isolate each PV module in the array, reducing array voltage to <80V in seconds.

PLEASE NOTE: Generac PWRcell Installer Certification is required for installation, commissioning and warranty service.

Features and Benefits

  • Safe and reliable
  • Fast, easy, and simple to install
  • One SnapRS device per PV module
  • Achieves PVRSS compliance
  • Low cost, high efficiency solution

Complete Your PWRcell System with These Additional Items (Sold Separately)

  • 1410-195 - Generac PWRcell G0070000 Smart Management Module
  • 1410-196 - Generac PWRcell G0070060 Smart Management Module
  • 1420-041 - Generac PWRcell XVT076A03 Inverter
  • 1460-026 - Generac PWRcell APKE00010 PV Link Substring Optimizer
  • 1810-019 - Generac PWRcell APKE00008 Battery Module Spacer Kit
  • 1810-020 - Generac PWRcell APKE00009 Battery Module Upgrade Kit
  • 1830-013 - Generac PWRcell APKE00028 Battery Cabinet
  • 1850-014 - Generac PWRcell G0080040 Battery Module
  • 1940-114 - Generac PWRcell CXSW100A3 Automatic Transfer Switch
  • 1940-115 - Generac PWRcell CXSC100A3 Automatic Transfer Switch
  • 1940-116 - Generac PWRcell CXSW200A3 Automatic Transfer Switch

PWRcell Full System Overview
