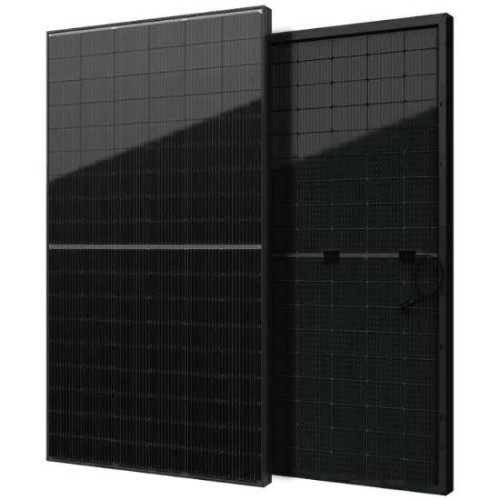

SEG Solar SEG-430-BTD-BG-PT Bifacial Solar Panel Pallet
36ea Min Purchase, 430W, Ukon N Series, MC4, 30mm Black Frame, All Black, 108 N-Type TOPCon Mono, Double Glass, 30A Fuse, 1500VDC, 408.0W PTC
 |
| Flat rate shipping within the 48 contiguous states. Check your cart for the total. |
SEG Solar SEG-430-BTD-BG-PT Bifacial Solar Panel Pallet, 36ea Min Purchase, 430W, Ukon N Series, MC4, 30mm Black Frame, All Black, 108 N-Type TOPCon Mono, Double Glass, 30A Fuse, 1500VDC, 408.0W PTC
SEG Solar Pallet Savings
Save even more on RES Supply's every day low SEG Solar prices by purchasing a pallet. Or purchase multiple pallets to take advantage of our low $149 flat rate shipping.
SEG - A Robust American Solar Company
Established in 2016 and based in Houston, Texas, SEG Solar is a U.S. manufacturer with a fully integrated global supply chain, renowned for producing high-quality solar modules. Committed to providing reliable and cost-effective solar panels worldwide, SEG Solar serves utility, commercial, and residential markets. The company has been named a Top Performer by PVEL for three consecutive years, received a Silver Medal in the EcoVadis CSR rating, ranked among the Top 10 Solar Panel Brands in the U.S. by SolarReviews, and earned the Top Innovation Modules award from EUPD.
SEG Solar boasts a module production capacity exceeding 6GW, with strategically located manufacturing facilities in the USA and Indonesia. This reinforces a dedication to bolstering the global photovoltaic industry’s supply chain and advancing energy independence. By the close of 2024, SEG Solar had delivered over 6GW of solar modules worldwide.
Yukon N - Advanced N Type PV Module
The SEG Solar SEG-430-BTD-BG-PT is a high performance bifacial solar module in the Yukon N series. It is comprised of 108 N-Type halfcells sandwiched between 2 sheets of glass with an all-black aesthetic. The half-cut N-Type solar cells have an efficiency of over 25.0%, resulting in an improved temperature coefficient. Additionally, nearly zero LID/LeTID effect and outstanding outdoor low irradiation performance contribute to the overall value these modules bring to the market. The SEG-430-BTD-BG-PT N-Type cells have a bifacial rate of up to 85%, which is 15% higher than PERC, providing additional power gain.
Key Features
- High module conversion efficiency
- Super multi busbar technology
- Superior load capacity
- Better temperature coefficient
- Higher bifacially
- 30-year guarantee on product material and workmanship
- 30-year linear power output warranty
- Houston, Texas based company
Mechanical Characteristics
- Cell Type: N-TOPCon 182 x 91mm(108 pcs)
- Dimensions (L × W × H): 1722mm (67.80 inch) x 1134mm (44.65 inch) x 30mm (1.18 inch)
- Weight: 20.5kg (45.19 lbs)
- Glass: 1.6 mm AR coating semi-tempered glass / low iron
- Frame: Black anodized aluminum alloy
- Connector: PV-CO02-xy / MC4
- Mechanical Load(Front): 5400 Pa / 113 psf*
- Mechanical Load(Rear): 2400 Pa / 50 psf*
- *Refer to SEG installation Manual for details
