IronRidge FF2-02-M2 FlashFoot2

While Quantities Last - All Sales Final

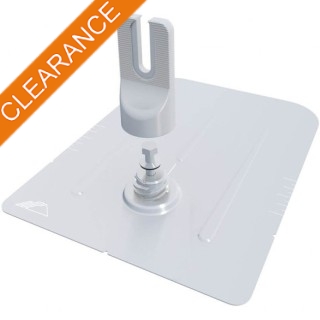

IronRidge FF2-02-M2 FlashFoot2, 8" x 12" with Cap-Foot, Includes 5/16" x 4.75" SS Lag Bolt with EPDM Washer, Mill, UFO Series, Qty. 1

Now With Narrower 8" Flashing to Minimize Nail Interference.

Another Evolution in Solar System Flashing

The IronRidge FF2-02-M2 FlashFoot2™ replaces the need for separate standoffs, flashings, and L-feet with an all-in-one design for mounting XR Rails to composition shingle roofs. This integrated design incorporates structural and waterproofing features into a single assembly. The completely redesigned system provides a unique water seal which is elevated and encapsulated, delivering redundant layers of protection against water intrusion. Plus, the twist-on cap provides further protection and perfectly aligns the rail attachment with the lag bolt, maximizing the mechanical strength of the connection. It is also improved with a narrower 8" flashing to minimize nail interference.

Features

• Fully elevated and encapsulated seal;- This design diverts water away from the seal by raising it 1", which when paired with the fully encapsulated cap allows the attachment to pass the TAS-100 Wind-Driven Rain Test
• Built-in alignment markers and the single, same 7/16" socket size helps streamline and speed up installation
• Simple and unique twist-on cap design replaces traditional L-Foot connections - This also protects the lag bolts and provides excellent mechanical strength by aligning the rail and lag bolt in a fully aligned load path
• Also available in black finish
