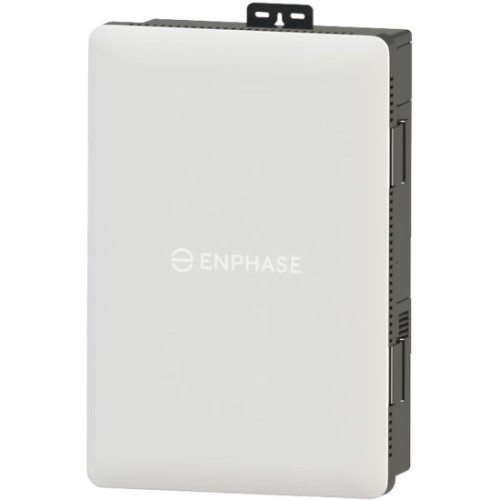

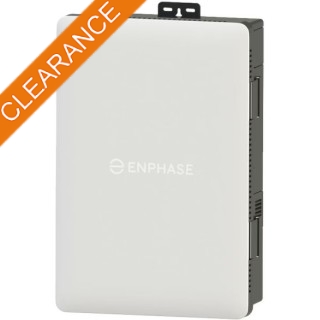

Enphase X-IQ-AM1-240-6C IQ Combiner
For IQ Battery 10C, Pre-Wired, 120/240 VAC, Integrated CCB and IQ Gateway and RGM & Optional Consumption Monitoring, Cell Modem w/ 5 Yr Data Plan, NEMA 3R
 |
| This item ships free within the 48 contiguous states. |
Enphase X-IQ-AM1-240-6C IQ Combiner, For IQ Battery 10C, Pre-Wired, 120/240 VAC, Integrated CCB and IQ Gateway and RGM & Optional Consumption Monitoring, Cell Modem w/ 5 Yr Data Plan, NEMA 3R
The IQ Combiner 6C (X-IQ-AM1-240-6C) consolidates interconnection equipment into a single enclosure, simplifying the installation of IQ Series Microinverters and IQ Batteries by offering a consistent, pre-wired solution for residential applications. IQ Combiner 6C is compatible with the IQ Battery 10C and IQ Meter Collar, serving as an all-in-one solution that includes breaker spaces for PV, battery, and an EV charger. It integrates a load controller with breaker spaces for loads and includes pre-installed and pre-wired current transformers (CTs) for PV and battery metering. The IQ Combiner 6C, together with IQ Microinverters, the IQ Meter Collar, and the IQ Battery 10C, provides a complete, backup-capable Enphase Energy System.
NOTE: This combiner is compatible with the newest IQ8 Series microgrid technology and is also backwards compatible with all previous generation microinverters (IQ6 & IQ7 Series Microinverters).
Battery System Controller Compatibility: Enphase IQ Battery 10C (IQBATTERY-10C-1P-NA) only. Not compatible with IQ 3/10/3T/10T or IQ Battery 5P (IQBATTERY-5P-1P-NA) and EP200G-SC2-RSD-KIT System Controller 2 or previous System Controllers.
Please see Compatibility Matrix under the Documents tab for clarification on your specific system.
Features
Smart
- Integrated controller and IQ Gateway
- Includes Enphase Mobile Connect (CELLMODEM-07-NA)
- Supports flexible networking: Wi-Fi, Ethernet, or Cellular
- Provides production and storage metering (revenue-grade)
- Provides consumption/load/third-party PV and EV charger monitoring
Easy to Install
- Pre-installed UL 489 certified device for Rapid Shutdown
- Single stud mountable, with two screws
- Supports multiple conduit entry options such as top right, top left, bottom left, bottom right, bottom rear, and bottom
- Supports up to five PV, two battery, and one EV charger branch-circuit breakers
- Bluetooth-based Wi-Fi provisioning for easy Wi-Fi setup
- Built-in load controller with space for a double-pole breaker enables easy monitoring and control of heavy loads
Reliable
- Durable NRTL-certified NEMA type 3R enclosure
- UL-certified for safety and performance
- Field-serviceable IQ Gateway and controller boards
- 15-year limited warranty
Introducing the Enphase IQ Combiner 6C
IQ Combiner 6C- Tips for Installing
