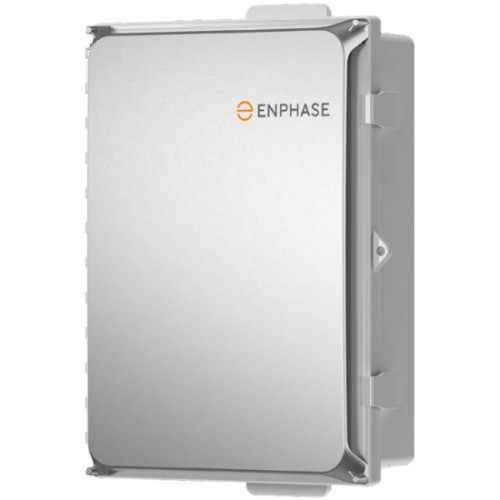

Enphase X-IQ-AM1-240-5C-HDK IQ Combiner

Enphase X-IQ-AM1-240-5C-HDK IQ Combiner, Pre-Wired, 80A, 120/240 VAC, With IQ Envoy PCBA for Integrated RGM & Optional Consumption Monitoring, with IQ Battery CT and 2 Consumption CTs, Cell Modem w/ 5 Yr Data Plan, With Breaker Hold Down Kit, NEMA 3R

The newest IQ Combiner, X-IQ-AM1-240-5C-HDK consolidates interconnection equipment into a single enclosure, and streamlines IQ Series Microinverters and IQ Gateway installation by providing a consistent, pre-wired solution for residential applications. It uses Control Cable wiring for communication and is compatible with IQ System Controller 3/3G and IQ Battery 5P, providing a complete grid-agnostic Enphase Energy System. This model is identical to the standard IQ Combiner 5C, but it comes with a pre-installed hold-down kit (HDK). This kit is designed to secure circuit breakers within the combiner, which can be a requirement for certain installations or jurisdictions. the "-HDK" suffix indicates the inclusion of the pre-installed hold-down kit, which can simplify installation and potentially address specific code requirements in some areas. If a hold-down kit is needed or desired for your installation, the HDK version eliminates the need to purchase and install it separately. NOTE: Breakers are sold separately.

Compatible with the IQ8 Series of microinverters and backwards compatible with all previous generation microinverters, the Enphase X-IQ-AM1-240-5C-HDK IQ Combiner with Enphase IQ Gateway PCBA (Printed Circuit Board A), consolidates PV interconnection equipment into a single enclosure and streamlines IQ Series Microinverters and IQ Gateway installation by providing a consistent, pre-wired solution for residential applications. The X-IQ-AM1-240-5C-HDK combines up to four AC branch circuits of IQ Series Microinverters and/or IQ Batteries. It has an outdoor-rating, NRTL-certified NEMA type 3R enclosure containing an IQ Gateway, circuit breakers, a pair of consumption metering CTs, an IQ Battery 5P metering CT, and wiring for IQ Gateway connections. The IQ Combiner 5 includes a Mobile Connect LTE-M1 cell modem. Use the IQ Combiner 5 for single-phase applications and to support the AC connections needed for an Enphase residential solar installation.

NOTE: This combiner is compatible with the newest IQ8 Series microgrid technology and is also backwards compatible with all previous generation microinverters (IQ6 & IQ7 Series Microinverters).

Battery & System Controller Compatibility: IQBATTERY-5P-1P-NA and IQ System Controller 3/3G only. Not compatible with IQ 3/10/3T/10T and EP200G-SC2-RSD-KIT System Controller 2 or previous System Controllers. Please see Compatibility Matrix under the Documents tab for clarification on your specific system.

NOTE:  Is NOT compatible with the Enphase IQ Battery 10C (IQBATTERY-10C-1P-NA).

Features

Smart

• Includes IQ Gateway for communication and control
• Includes Enphase Mobile Connect (CELLMODEM-M1-06-SP-05) - Enphase Mobile Connect LTE CAT M1 cellular modem with 5-year T-Mobile data plan for US and Puerto Rico. For systems up to 60 Microinverters.
• Supports flexible networking: Wi-Fi, Ethernet, or cellular
• Provides production metering (revenue grade) and consumption monitoring

Easy to install

• Mounts to one stud with centered brackets
• Supports bottom, back, and side conduit entry
• Supports up to four 2-pole branch circuits for 240VAC plug-in breakers (Sold Separately)
• 80A total PV branch circuits
• Bluetooth-based Wi-Fi provisioning for easy Wi-Fi setup

Reliable

• Durable NRTL-certified NEMA type 3R enclosure
• 5-year limited warranty
• Two-year labor reimbursement program coverage included
• UL1741 listed
