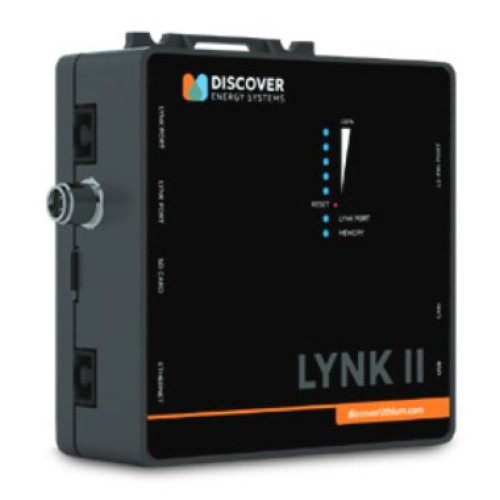

Discover Energy 950-0025 Lynk II Communication Gateway
Closed-Loop Communication SoC With Pe, Monitoring, Data Logs, 3X Programable Relays
 |
| This item ships free within the 48 contiguous states. |
Discover Energy 950-0025 Lynk II Communication Gateway, Closed-Loop Communication SoC With Pe, Monitoring, Data Logs, 3X Programable Relays
The Discover Energy 950-0025 LYNK II Communication Gateway unlocks the full potential of compatible Discover lithium batteries by enabling advanced communication between the battery management system (BMS), hybrid inverter-chargers, and solar charge controllers. By providing real-time battery data, including state of charge, voltage, temperature, and battery status, the LYNK II allows connected power electronics to dynamically optimize charging and discharging performance.
Designed for advanced energy storage systems, the 950-0025 LYNK II aggregates and communicates battery information across a network of compatible Discover batteries while supporting closed-loop integration with leading inverter manufacturers including Sol-Ark, Schneider Electric, Victron Energy, SMA, Studer Innotec, and Morningstar. This intelligent communication helps improve charging performance, maximize usable battery capacity, and simplify system configuration.
In addition to enabling advanced inverter integration, the 950-0025 LYNK II provides local status indication through onboard LEDs, supports remote monitoring and data logging through compatible inverter platforms, and allows installers to configure communication settings, update firmware, download diagnostics, and program relay functions using Discover's LYNK ACCESS software.
Features
Advanced Battery Integration
- Provides real-time communication between Discover lithium batteries and compatible inverter systems
- Enables closed-loop battery charging and discharge control
- Automatically communicates battery voltage, current, temperature, state of charge, and status information
- Helps optimize charging performance and battery utilization
Real-Time Monitoring
- Displays battery State of Charge (SoC) and communication status through onboard LEDs
- Supports remote monitoring and site data logging through compatible inverter platforms
- Provides access to battery diagnostics and performance data
Broad System Compatibility
- Compatible with Discover AES LiFePO4, AES RACKMOUNT, and AES PROFESSIONAL batteries
- Supports integration with Sol-Ark, Schneider Electric, Victron Energy, SMA, Studer Innotec, Morningstar, and other supported devices
- Supports CANbus and LYNK network communications
Installer-Friendly Configuration
- Configurable using Discover LYNK ACCESS software
- Supports firmware updates, diagnostics, relay programming, and data downloads
- Surface or flush-mount installation options
Compact Design
- Compact enclosure measures 120 x 135 x 44 mm (4.7 x 5.4 x 1.7 in)
- Lightweight design at approximately 0.3 kg (0.7 lb)
- IP20 rated for indoor installations
Introducing the Discover Energy LYNK II Communication Gateway
