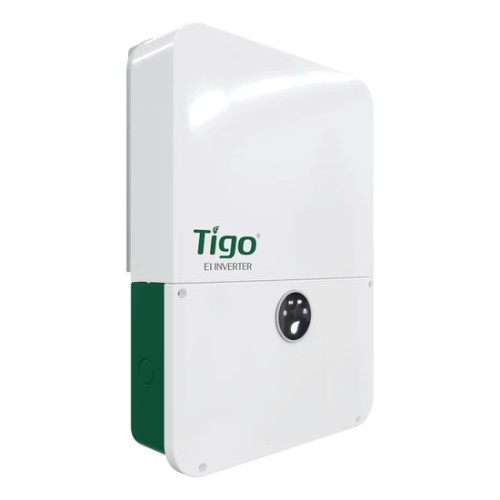

Tigo TSI-7.6K-US (601-2107K6-0003) EI Inverter
Hybrid, 7.6kW, 240/208VAC, 600VDC, 3 MPPT Inputs, Built-in Wi-Fi, RS-485, PVRSS with TS4-A-F/2F, TS4-A-O/S, 200A ATS, AFCI Protection, NEMA 4X/IP65
Item # 1420-032
Price: $2,049.00
 |
| This item ships free within the 48 contiguous states. |
Tigo TSI-7.6 (601-2107K6-0003) EI Inverter, Hybrid, 7.6kW, 240/208VAC, 600VDC, 3 MPPT Inputs, Built-in Wi-Fi, RS-485, PVRSS with TS4-A-F/2F, TS4-A-O/S, 200A ATS, AFCI Protection, NEMA 4X/IP65
Overview
The Tigo TSI-7.6 (601-2107K6-0003) EI Inverter is a 7.6kW hybrid inverter with built-in Wi-Fi and compatibility with a 200A ATS. It serves as the centerpiece of the Tigo Energy Intelligence (EI) solution, orchestrating energy production and consumption when coupled with a Tigo EI Battery.
When paired with Tigo TS4 MLPE, the inverter enables module-level monitoring, optimization, and rapid shutdown through the EI platform. It also connects to TS4s, GO Battery, ATS, and wirelessly sends data to the Tigo Energy Intelligence platform.
This 7.6K configuration supports 208V or 240V service, includes 3 MPPTs, supports up to 200% DC oversizing, and uses a NEMA4X/IP65 enclosure for protected installation environments.
Features
- Storage-ready hybrid inverter for the Tigo Energy Intelligence (EI) solution
- Connects to TS4s, GO Battery, ATS, and wirelessly sends data to the Tigo Energy Intelligence platform
- Enables module-level monitoring, optimization, and rapid shutdown when paired with Tigo TS4 MLPE
- Up to 200% DC oversizing with a 2:1 DC/AC ratio
- Built-in Wi-Fi with optional cellular communications for data backup
- Compatible with 208V or 240V service
- Includes Inverter Power Output Control (IPOC) for power-limiting applications
- Includes a revenue-grade meter; ANSI C12.20, meets 0.5% accuracy
Specifications
- Part number: 601-2107K6-0003
- Model family: TSI-3.8/7.6/11.4K-US, 7.6K configuration
- Description: 7.6kW hybrid inverter with built-in Wi-Fi, compatible with 200A ATS
- Max recommended PV power: 15,200W STC
- MPPT configuration: 3 MPPTs, 2 PV strings per MPPT
- Full-load voltage range: 200V-500V
- Nominal AC power: 6,580W at 208V, 7,600W at 240V
- Max apparent power: 7,600VA; max output current: 32A
- Dimensions: 400 x 187 x 638mm (15.8 x 7.4 x 25.2 in.); weight: 20.5kg (45.2 lb.)
- Enclosure: NEMA4X/IP65
Tigo EI Residential Solution - Technical Overview
Tigo EI Inverter Specifications Overview
Tigo EI Inverter Installation Overview
