SolarEdge V-1-D-SE Nexis IslanDER Meter Socket Adapter
200A, 208/240VAC, Whole-Home Backup via 1-3 Nexis Inverters and Stationary Storage, RJ45 Plug, Ethernet Cable Not Included, NEMA 3R
Item # 1410-021
Price: $1,030.00
 |
| This item ships free within the 48 contiguous states. |
SolarEdge V-1-D-SE (V1-D-SE) Nexis IslanDER Meter Socket Adapter, 200A, 208/240VAC, Whole-Home Backup via 1-3 Nexis Inverters and Stationary Storage, RJ45 Plug, Ethernet Cable Not Included, NEMA 3R

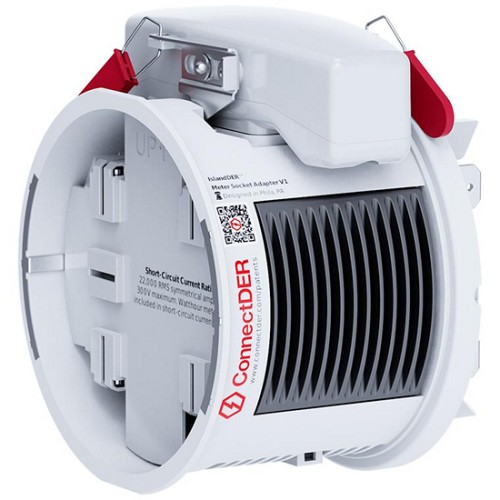

The SolarEdge V-1-D-SE (V1-D-SE) Nexis IslanDER Meter Socket Adapter enables whole-home backup without requiring a main panel upgrade, circuit relocation, or additional external components.
- Integrated Microgrid Interconnect Device (MID) and consumption current transformers (CTs)
- Reversible connection module with Ethernet port for direct communication with the SolarEdge Nexis Inverter
- Compatible with 2S and 12S meter forms, including ring, ringless, lever-bypass, and horn-bypass meter sockets
SolarEdge Nexis - One system. Total peace of mind.
SolarEdge Nexis delivers exceptional performance, streamlined Simple Click™ installation, and industry-leading safety—bringing future-ready energy solutions to every home.
Engineered with advanced protection technologies, enhanced cybersecurity, and a sleek, durable design, SolarEdge Nexis provides greater peace of mind, reliability, and resilience.
Flexible DC- or AC-coupling supports seamless integration into both new installations and retrofit applications.
Powerful
- 3.8–13 kW inverter capacity in a single system
- Modular 5–20 kWh battery stack
- Selectable backup power from 3.8 to 14.5 kW
- Up to 14.5 kW whole-home backup
Flexible
- Simplified system design and operation
- Cost-efficient installation
- Designed for indoor or outdoor installation
- Supports both AC- and DC-coupled configurations
- Embedded PCS can reduce the need for main panel upgrades
Durable
- Rugged metal enclosure
- Wide operating temperature range: -4°F to 131°F
- Rated for installation at altitudes up to 9,800 ft
- Flood-ready for up to 18 inches of standing water for up to 72 hours
- Replaceable decorative covers
SolarEdge Nexis Installation - Inverter Only
SolarEdge Nexis Installation - Battery Only
SolarEdge Nexis Installation - Inverter and Battery Stacked
