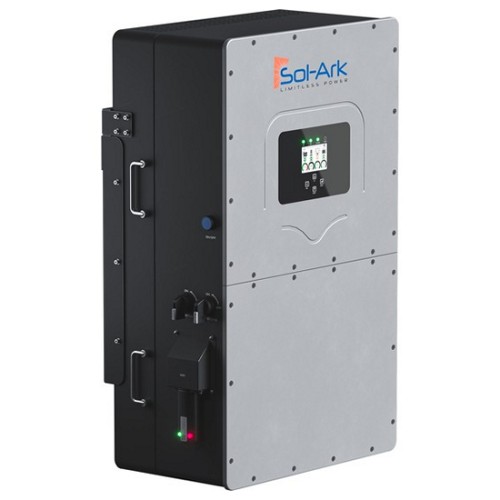

Sol-Ark 60K-3P-480V (60K-480V) Inverter
Hybrid, DC and/or AC Coupled, Battery/Battery Less, 60000W, 277/480VAC, 50/60Hz, 600VDC, 4 MPPT Inputs, 180A Passthrough, AFCI/GFDI, 3-300A CT’s, NEMA 3R
 |
| Flat rate shipping within the 48 contiguous states. Check your cart for the total. |
Sol-Ark 60K-3P-480V (60K-480V) Inverter, Hybrid, DC and/or AC Coupled, Battery/Battery Less, 60000W, 277/480VAC, 50/60Hz, 600VDC, 4 MPPT Inputs, 180A Passthrough, AFCI/GFDI, 3-300A CT’s, NEMA 3R
Overview
The Sol-Ark 60K-3P-480V (60K-480V) Inverter is a commercial hybrid inverter engineered for maximum energy production in demanding commercial and industrial applications. It is designed as an energy storage solution that helps businesses harness renewable energy, reduce utility costs, and maintain critical operations during grid outages.
With native 277/480V 3-phase output, AC and DC coupling options, and modular architecture, the 60K-3P-480V integrates with new or existing solar and storage systems. The system can be expanded by paralleling up to 10 inverters and using up to 16 batteries per inverter, supporting projects from 40 kWh to 9.6 MWh.
The inverter supports peak shaving to help reduce demand charges, includes MySol-Ark advanced controls and monitoring for real-time performance visibility, and provides a standard 10-year Sol-Ark warranty.
Features
- Commercial hybrid inverter built for demanding commercial and industrial applications
- Native 277/480V 3-phase output with AC and DC coupling options
- Modular architecture supports up to 10 inverters in parallel and 16 batteries per inverter
- Supports project sizes from 40 kWh to 9.6 MWh
- Integrated 4-channel MPPT charge controller for DC coupling
- Designed to help reduce demand charges through optimized solar energy usage and peak shaving
- MySol-Ark advanced controls and monitoring support real-time system performance and fleet management
- Integrated PV DC disconnect switch, ground fault detection, rapid shutdown control, arc fault detection, PV input lightning protection, reverse polarity protection, and surge protection
Specifications
- Max allowed PV power (STC): 78,000W
- MPPT voltage range: 150-850V; startup voltage: 180V
- Max input voltage: 1,000V
- No. of MPP trackers: 4; PV strings per MPPT: 2
- Max AC coupled input: 60,000W
- Nominal AC voltage: 277/480V (4-wire Wye) or 480V (3-wire Delta)
- Real power, max continuous: 60,000W
- Battery support: lithium-ion; CAN BMS communication
- Dimensions: 894 x 528 x 295 mm (35.2 x 20.8 x 11.6 in); weight: 80 kg / 176 lb
- Enclosure: IP65/NEMA 3R
