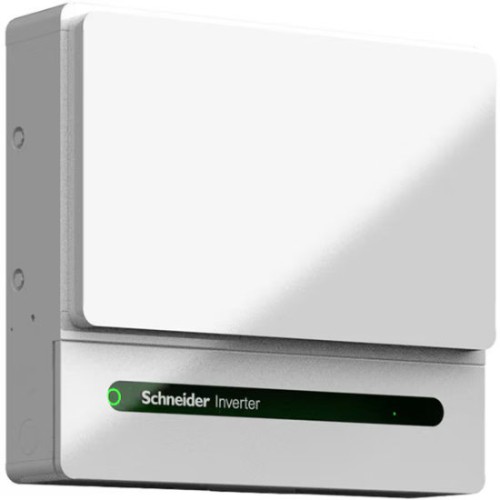

Schneider Electric HY8K1NA1 Home System Inverter
Hybrid, DC or AC Coupled, 7700W, 240VAC, 60Hz, 600VDC, 4 MPPT Inputs for Solar, 3 Battery Inputs, RSD, DC Disconnect, AFCI/GFI, Ethernet/WLAN, NEMA 4X
 |
| This item ships free within the 48 contiguous states. |
Schneider Electric HY8K1NA1 Home System Inverter, Hybrid, DC or AC Coupled, 7700W, 240VAC, 60Hz, 600VDC, 4 MPPT Inputs for Solar, 3 Battery Inputs, RSD, DC Disconnect, AFCI/GFI, Ethernet/WLAN, NEMA 4X
The new Schneider Home system allows you to harness energy from the sun by converting the DC power from solar panels into AC power for your home. You can monitor and control your energy usage down to specific devices installed in your home to create a personalized energy system that suits your needs. In addition to powering your home, the Schneider Home system enables you to sell excess power your home produces back to the grid, allowing you to make money while enjoying the comforts of your solar powered home.
Part of Schneider Home, the HY8K1NA1 Inverter is a high-performance hybrid inverter used to connect the Boost battery and solar panels to the home and grid. The Inverter has DC ports for Boost and solar, with 3 battery inputs and 4 MPPT inputs for solar. The DC-coupling of solar and batteries allows for higher system efficiency when charging batteries from solar. When the HY8K1NA1 Inverter is installed with Boost and a Schneider Backup Controller, the system automatically powers the home during a grid outage. Homeowners can monitor, control, and automate their entire home energy with the Schneider Home app. For installers, use the easy-to-use commissioning app to save time. The installer portal web app will provide ongoing system monitoring and troubleshooting remotely. With the Schneider HY8K1NA1 Inverter, systems can be configured with solar and batteries, solar-only, or batteries-only.
Features
Flexible and Efficient Solar
- Supports solar arrays sizes up to 15.4 kW
- Rated Power: 7.7 kW continuous output
- 4 independent Maximum Power Point Tracking (MPPT) inputs for optimized solar harvesting
- Supports complex solar array orientations on multiple roof surfaces
- Monitor energy in real time from anywhere, with the easy-to-use Schneider Home app
- Up to 98% peak efficiency
- Wall-mounted, NEMA Type 4X enclosure for outdoor durability
- Compatible with Schneider Home solutions: Simple, smart and sustainable solutions for home energy management
- 10 year warranty
Optional Home Backup Power
- Add the Schneider Boost battery to store solar energy and power your home when the grid is out
- Supports up to 3 Schneider Boost batteries
- Save money by using your battery when electricity rates are high
- More reliable backup power with the inverter's 15.4 kW surge power capability
- Automatically powers the home during grid outages when paired with Schneider Backup Controller
- High system efficiency with fewer steps of power conversion
Additional System Components (Sold Separately)
- Schneider Boost 10 kWh battery
- Schneider Pulse
- Schneider Energy Monitor
- Schneider Home App
Schneider Boost and Inverter, a Part of Schneider Home
