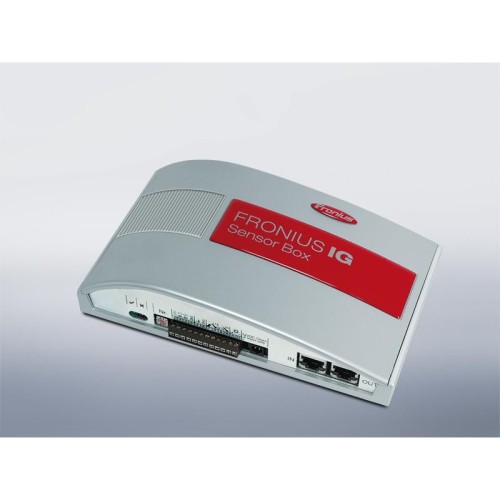

Fronius 4,240,104 Sensor Box
Sensor Interface with 6 Sensor Input Channels, Use with DatCom System
 |
| This item ships free within the 48 contiguous states. |
Fronius 4,240,104 Sensor Box, Sensor Interface with 6 Sensor Input Channels, Use with DatCom System
It is possible to install various sensors into the Fronius DATCOM system. These permit an in-depth look into the way the PV system works and make it possible to draw informed conclusions about the overall performance. As usual, this option is available either as a plug-in card or as box. Plug-in cards are recommended for a maximum distance of 65 - 100ft between the inverter and sensor(s). Larger distances can be bridged using the box.
The following sensors can be connected to the Sensor Box:
- irradiance
- ambient temperature
- module temperature
- energy counter
- wind speed
The Fronius Sensor Box provides an interface with 6 sensor input channels for use within DatCom System
- 2 ea. temperature channels (PT 1000)
- 1 ea. Irradiance channel (Voltage input 0-1V)
- 2 ea. Digital Inputs
- 1 ea. Standard 20 ma current interface
Fronius DATCOM
Fronius offers the most robust data monitoring and analysis package available, and has a wide array of components to assist you in collecting information about your system's performance. The Fronius data monitoring system, also known as the DATCOM system, helps you keep track of information such as cumulative energy output, system voltage, and irradiance, just to name a few parameters.
Installers and homeowners find this information helpful in analyzing their system's performance over extended periods to ensure their system is operating as advertised, and to corroborate the amount of energy sold back to the utility. Public facilities use this information to display system performance to the general public, while schools use the DATCOM system to help with science curricula and educational projects and to compare their systems with those in other cities.
Comparable systems of this sophistication can cost several thousand dollars more, and often don't give you the PV-specific analysis tools. The DATCOM system's combination of performance and price makes it the best value in data monitoring available.
