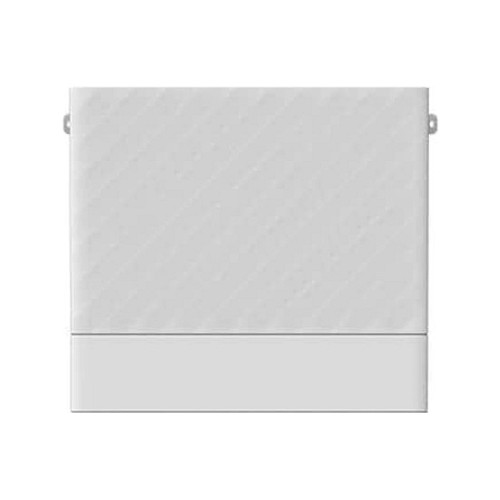

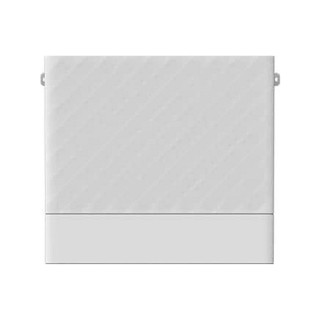

Fox ESS PowerQ AIO H1-11.4-US (AIO-H1-11.4-US, 30-139-1132F-00) Inverter
Hybrid, AC or DC Coupled, 11400W, 120/240VAC, 60Hz, 3 MPPT, 600VDC, With AFCI/GFDI, Tigo RSD Transmitter, Battery Base, Use With 2-5 PowerQ AIO EQ4000 Batteries
 |
| Flat rate shipping within the 48 contiguous states. Check your cart for the total. |
Fox ESS PowerQ AIO H1-11.4-US (AIO-H1-11.4-US, 30-139-1132F-00) Inverter, Hybrid, AC or DC Coupled, 11400W, 120/240VAC, 60Hz, 3 MPPT, 600VDC, With AFCI/GFDI, Tigo RSD Transmitter, Battery Base, Use With 2-5 PowerQ AIO EQ4000 Batteries
The Fox ESS PowerQ AIO (All-In-One) H1-11.4-US Inverter is part of the PowerQ integrated residential energy storage system. The cube inverter manages the conversion of electrical energy between AC and DC forms. It handles the flow of power between the solar modules, grid and batteries - ensuring efficient transfer and utilization of energy.
Features
- Easy Installation: flexible configuration, plug and play set-up
- High Voltage: compatible with high-voltage batteries for maximum round-trip efficiency
- Type 4X: engineered to last with maximum flexibility, and suitable for outdoor installation
- Remote Monitoring: monitor your system remotely via smartphone app or web portal
- High Backup Power: up to 12.5kW
- Fast Battery Charging: up to 50A charging and 60A discharging current
- RSD Transmitter Inside: a Tigo transmitter is built-in, so only RSD receivers are required
- Quick UPS Switchover: the switchover time from on-grid to off-grid or from off-grid to on-grid is less than 20ms
- Safety & Reliability: transformerless design with software and hardware protection
- Arc Fault Detection: capable of detecting up to 35A arc current
Includes
- Cube Inverter
- Side Cover
- Battery Base
- Installation Hardware
- Lifting Handles
- Cable Stickers
- Quick Installation Guide
Fox ESS PowerQ
The Fox ESS PowerQ is a whole home energy solution for residential users designed to meet various backup scenarios via modular system design and scalability. This comprehensive energy storage system combines both the PowerQ AIO (All-In-One) H1-11.4-US Inverter and the AIO EQ4000 series batteries in a single unit.
Installation is easy, with a plug and play solution that can save valuable time for installers. User friendly, with remote monitoring and operation via the FoxCloud US mobile phone app.
The PowerQ AIO EQ4000 batteries are stackable from 2 to 5 modules, providing 19.85kWh per stack - storing excess energy generated during times of low demand and supplying it during times of high demand. Up to 4 stacks can be connected in a system, delivering a total storage capacity of 79.4kWh.
This modular design allows for maximum flexibility, making the PowerQ system suitable for a broad range of storage applications - from time of use (TOU) load shifting or whole home and partial home backup.
NOTE: 2-5 PowerQ AIO EQ4000 Battery Modules are required for system functionality. Add a PowerQ Fox Hub G2 for smart load shedding, generator compatibility or system expansion.
PowerQ Introduction
PowerQ Quick Installation Guide
PowerQ With Fox Hub G2 Quick Installation Guide
