EG4 GridBOSS Micro-Grid Interconnection Device
FlexBOSS21 Compatible, 200A Service Entrance Rating, 4 Programmable Ports, Up to 3 90A Hybrid Inverters, Generator Input Up to 125A
Item # 1410-004
Price: $1,872.00
 |
| This item ships free within the 48 contiguous states. |
EG4 GridBOSS Microgrid-Interconnect-Device, FlexBOSS21 Compatible, 200A Service Entrance Rating, 4 Programmable Ports, Up to 3 90A Hybrid Inverters, Generator Input Up to 125A
Overview

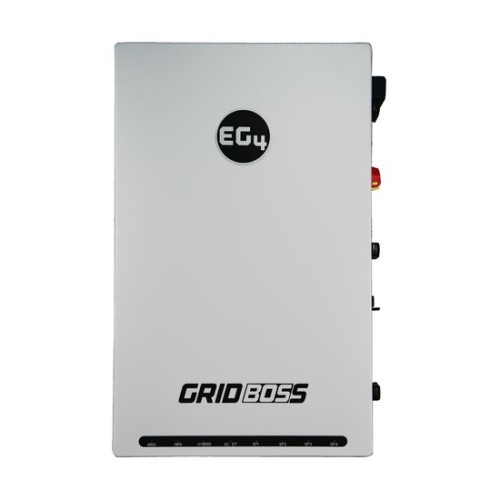

The EG4 GridBOSS Microgrid-Interconnect-Device consolidates utility power, hybrid inverters, generators, smart loads, and AC-coupled inverters into a centralized connection point. It features four programmable ports for AC coupling or smart load management up to 125A.
The GridBOSS supports up to three 90A hybrid inverters and carries a 200A service entrance rating for both backed-up and non-backed-up loads. When paired with the FlexBOSS21, it supports whole or partial home backup and microgrid setups while helping reduce installation time and hardware requirements.
Features
- Consolidates multiple electrical components into a single device
- Provides a centralized connection point for utility power, inverters, generators, and smart loads
- Supports AC coupling and smart load management up to 125A
- Designed to simplify complex solar installations and reduce installation time
- Can be paired with the FlexBOSS21 for whole or partial home backup and microgrid setups
Specifications
- MODEL #: MI-200-2P-HYB-AW
- SKU: EG4MID2P200AV2.1
- 200A service entrance rating
- Supports up to three 90A hybrid inverters
- Four programmable smart load or AC-coupling ports
- Supports generator input up to 125A
- Rated for 200A backed-up and non-backed-up loads
- Centralized connection point for utility power, hybrid inverters, generators, smart loads, and AC-coupled inverters
