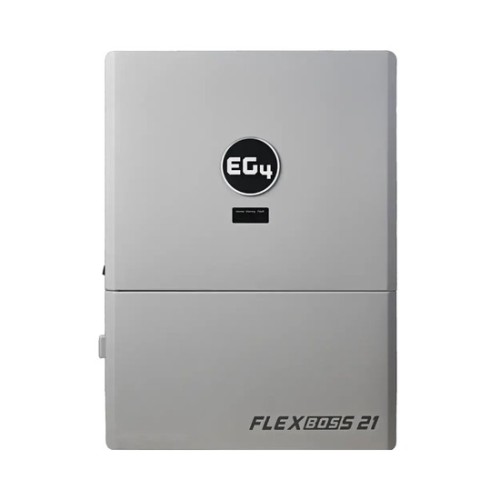

EG4 FlexBOSS21 All-In-One Hybrid Inverter
16kW Continuous Output, 12kW Battery Output, 120/240/208VAC, 50/60Hz, 48VDC, 3 MPPT Inputs, 90A Passthrough, Wi-Fi Monitoring, Rapid Shutdown
Item # 1420-038
Price: $3,599.99
 |
| This item ships free within the 48 contiguous states. |
EG4 FlexBOSS21 All-In-One Hybrid Inverter, 16kW Continuous Output, 12kW Battery Output, 120/240/208VAC, 50/60Hz, 48VDC, 3 MPPT Inputs, 90A Passthrough, Wi-Fi Monitoring, Rapid Shutdown
Overview
The EG4 FlexBOSS21 All-In-One Hybrid Inverter is a split-phase, 48V hybrid inverter/charger for residential and small commercial applications. It supports up to 21kW of PV input, provides 16kW of continuous output with PV and battery, and provides up to 12kW of continuous output using battery alone.
Three individual MPPTs provide control over solar inputs, while the plug-in Wi-Fi device enables remote system management through the EG4 app or EG4 Monitor system. The FlexBOSS21 can operate off grid, use grid electricity, and sell power back to the grid.
The inverter is designed to work with the EG4 GridBOSS MID power gateway and can be paralleled with up to 16 units for up to 256kW of total output.
Features
- All-in-one hybrid inverter designed for residential and small commercial markets
- Supports operation off grid, with grid electricity, and selling power back to the grid
- Can be paralleled with up to 16 units for up to 256kW total output
- Plug-in Wi-Fi device supports wireless connection to the EG4 app or EG4 Monitor system
- Built-in rapid shutdown capabilities
- Three MPPTs support up to five strings and up to three panel orientations
- Designed to work with the EG4 GridBOSS MID power gateway
Specifications
- MODEL #: IV-16000-HYB-AW
- SKU: EG4INV240V50AFLXBOSSV2
- Split-phase, 48V hybrid inverter/charger
- Nominal grid voltage: 120/240 VAC or 120/208 VAC
- Usable PV input: 21kW
- Continuous output: 16kW with PV and battery; 12kW using battery alone
- Three individual MPPTs, configured as 26A/26A/15A
- UL 3141 and UL 1741
