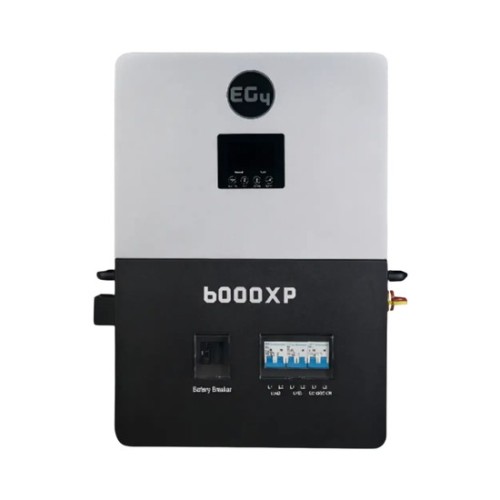

EG4 6000XP All-In-One Off Grid Inverter
6kW Continuous Output, 120/240VAC, 50/60Hz, 48VDC, 2 MPPT Inputs, Wi-Fi Monitoring, Rapid Shutdown
Item # 1420-039
Price: $1,499.99
 |
| Flat rate shipping within the 48 contiguous states. Check your cart for the total. |
EG4 6000XP All-In-One Off Grid Inverter, 6kW Continuous Output, 120/240VAC, 50/60Hz, 48VDC, 2 MPPT Inputs, Wi-Fi Monitoring, Rapid Shutdown
Overview
The EG4 6000XP All-In-One Off Grid Inverter is a 48V split-phase inverter/charger with 8kW of PV input and 6kW of output power. It can operate entirely off-grid or use grid input for supplemental charging and output power.
Its transformerless, high-frequency design provides 120/240V split-phase output from a single unit. Dual MPPTs, built-in switchgear, a dedicated GEN port, mountable Wi-Fi, and EG4 monitoring software support installation, energy management, and system monitoring.
The 6000XP can be paralleled with up to 15 additional units for a combined 96kW of output power. It is UL 1741 Certified and supports closed-loop communications with EG4 48V batteries.
Features
- All-in-one off-grid inverter/charger with grid input for supplemental charging and output power
- Dual MPPTs support up to 8kW of solar input and up to 480VDC
- Transformerless, high-frequency design with split-phase 120/240V output
- Built-in switchgear helps simplify installation
- Mountable Wi-Fi device supports wireless connection to EG4 monitoring software
- Closed-loop communications support compatibility with EG4 48V batteries
- Dedicated GEN port supports generator connection
- Up to 16 units can be paralleled for scalable system output
Specifications
- MODEL #: IV-6000-XP-IN
- SKU: EG4HYB6K00V2
- 48V split-phase inverter/charger
- 8kW maximum PV input and 6kW output power
- 120/240V split-phase output with a single unit
- 46.4–60 VDC lithium battery voltage range; 38.4–60 VDC lead-acid battery voltage range
- Up to 16 units can be connected in parallel for 96kW of combined output
- 50A AC bypass for grid or generator input
- Integrated disconnect
- UL 1741 Certified
