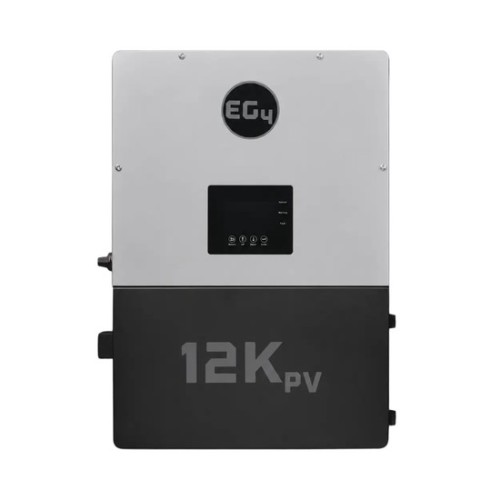

EG4 12kPV All-In-One Hybrid Inverter
8kW Continuous Output, 120/240/208VAC, 120/240/208VAC, 50/60Hz, 48VDC, 2 MPPT Inputs, 80A Passthrough, Wi-Fi Monitoring, Rapid Shutdown
Item # 1420-040
Price: $2,999.99
 |
| Flat rate shipping within the 48 contiguous states. Check your cart for the total. |
EG4 12kPV All-In-One Hybrid Inverter, 8kW Continuous Output, 120/240/208VAC, 120/240/208VAC, 50/60Hz, 48VDC, 2 MPPT Inputs, 80A Passthrough, Wi-Fi Monitoring, Rapid Shutdown
Overview
The EG4 12kPV All-In-One Hybrid Inverter is a 48V split-phase hybrid inverter/charger designed for residential and light commercial applications. It can utilize up to 12kW of solar input, provide up to 8kW of power while charging the battery bank, and operate off-grid, with grid electricity, or by selling power back to the grid.
The modular inverter supports up to 10 units in parallel for a total output of up to 80kW. Its plug-in Wi-Fi device enables wireless connection to the EG4 app or EG4 Monitor system, while built-in rapid shutdown capabilities support applicable installation requirements.
Features
- Supports grid-interactive and off-grid configurations
- Designed for residential and light commercial applications
- Built-in rapid shutdown capabilities; CSA C22.2#330:2017 and NEC 690.12 ready
- Plug-in Wi-Fi device enables wireless connection to the EG4 app or EG4 Monitor system
- Modular design supports expansion and scalability
- Share Battery setting simplifies installation when paralleling multiple inverters
- Supports generator compatibility
- Capable of starting a 5-ton air conditioner without soft-start
Specifications
- MODEL #: IV-8000-HYB-AW
- SKU: EG4INV12KPV00V2
- 48V split-phase hybrid inverter/charger
- 12kW maximum PV input
- 8kW power output while charging the battery bank
- Up to 10 units in parallel for up to 80kW output
- Two MPPTs, 25A each
- Product dimensions: 29.5 × 20.5 × 11.2 in. (750 × 520 × 285 mm)
- Battery voltage range: 40–60 VDC for lithium or lead-acid batteries
- Integrated PV disconnect and surge protection device
