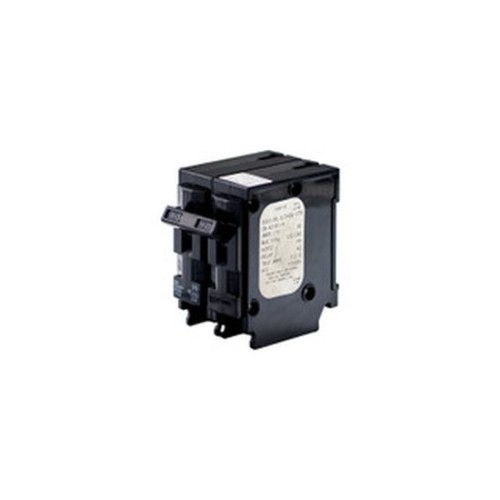

EG4 125 Amp AC Breaker
FlexBOSS21 Compatible, 125A, 120/240VAC, 500V Insulation Voltage, 10,000A Interrupting Capacity
Item # 1410-019
Price: $47.47
 |
| This item ships free within the 48 contiguous states. |
EG4 125 Amp AC Breaker, FlexBOSS21 Compatible, 125A, 120/240VAC, 500V Insulation Voltage, 10,000A Interrupting Capacity
Overview
The EG4 125 Amp AC Breaker is designed to provide overload and short circuit protection for energy systems. It is identified as compatible with the EG4 FlexBOSS21 Hybrid Inverter for integrated system protection.
The breaker features trip-free operation, an indicating handle, a working temperature range of -40°C to +85°C, and an interrupting capacity of up to 10,000A. It is suitable for residential and commercial solar systems, industrial automation and telecom equipment, and mobile power supply equipment.
Features
- Provides overload and short circuit protection for energy systems
- Trip-free operation and indicating handle
- Working temperature range of -40°C to +85°C
- Protection features include PV reverse polarity, over-voltage, and surge protection
- Meets GB/T 14048.2 / IEC 60947-2 and UL489 standards
- Suitable for residential and commercial solar systems, industrial automation and telecom equipment, and mobile power supply equipment
Specifications
- SKU: EG4BREAKER125A
- Current rating: 125A
- Rated voltage: AC 120/240V
- Rated insulation voltage: 500V
- Rated impulse withstand voltage: 4kV
- Interrupting capacity: up to 10,000A
- Electrical lifecycle: 6000 cycles; mechanical lifecycle: 10000 cycles
- Torque range: 2.8–6.8 N.m
- Compatible with the EG4 FlexBOSS21 Hybrid Inverter
