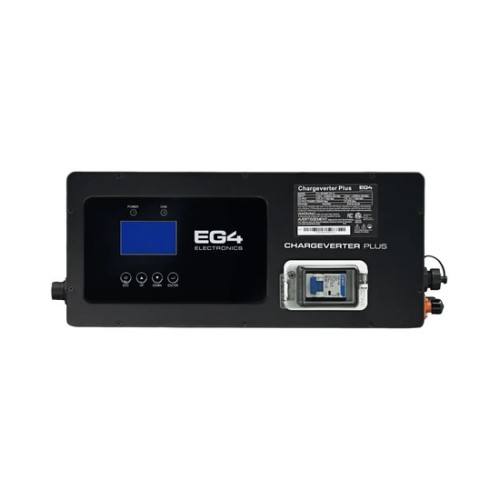

EG4 Chargeverter Plus Charger
0–100A Adjustable Charge Current, 48VDC, Up to 5kW, 120/208/240 VAC, RS485, IP54
Item # 1520-009
Price: $679.00
 |
| This item ships free within the 48 contiguous states. |
EG4 Chargeverter Plus Charger, 0–100A Adjustable Charge Current, 48VDC, Up to 5kW, 120/208/240 VAC, RS485, IP54
Overview
The EG4 Chargeverter Plus Charger is a UL certified AC-to-DC converter delivering stable 48V DC power output up to 5 kW. It supports 120, 208, or 240 VAC operation and adjustable charging current for battery charging.
Designed for integration with an EG4 ESS, the Chargeverter Plus supports high-THD power sources such as small generators and dirty grid power. Its IP54-rated enclosure, quick-connect power and communication ports, RS485 communications, built-in breaker, and dry contacts support installation and system control needs.
Features
- Stable AC-to-DC conversion for battery charging
- Delivers up to 5 kW of 48V DC power output
- Designed for use with high-THD power sources, including small generators and dirty grid power
- RS485 communications support closed-loop communication between the charger and battery
- Dry contacts support automatic generator start circuits
- IP54-rated enclosure for covered outdoor installations
- UL certified
Specifications
- MODEL #: CU-48-5000-OD-01
- SKU: EG4CV48V100AIP54
- Nominal battery voltage: 48VDC
- Adjustable charge current: 0–100A at 240 VAC, 0–50A at 120 VAC, and 0–80A at 208 VAC
- AC input operation: 120, 208, or 240 VAC
- IP54-rated enclosure
- RS485 communications port and built-in breaker
