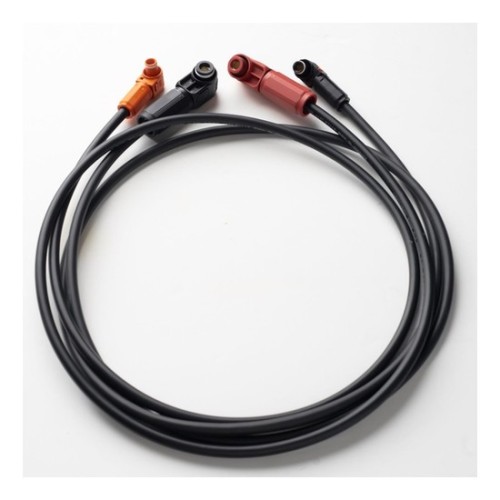

EG4 Chargeverter Adapter Cables
600VDC, 100A, 6'6" Length, 4AWG Max Wire Size, 9.3mm Wire Diameter
Item # 1520-007
Price: $155.00
 |
| This item ships free within the 48 contiguous states. |
EG4 Chargeverter Adapter Cables, 600VDC, 100A, 6'6" Length, 4AWG Max Wire Size, 9.3mm Wire Diameter
Overview
The EG4 Chargeverter Adapter Cables connect an EG4 Chargeverter-GC directly to EG4 280Ah Indoor and All Weather WallMount batteries without the need for busbars. The cables are fitted with the proper terminals for quick and reliable installation.
Designed for safety, simplicity, and durability, these adapter cables have a 600VDC rated voltage, 100A rated current, and 6'6" length. Each pair weighs 2.65 lb and supports a maximum wire size of 4 AWG.
Features
- Connects an EG4 Chargeverter-GC directly to EG4 280Ah Indoor and All Weather WallMount batteries
- Designed for installation without busbars
- Fitted with the proper terminals for quick and reliable installation
- Designed for safety, simplicity, and durability
Specifications
- SKU: EG4CHARGEVERTER-CA
- Rated voltage: 600VDC
- Rated current: 100A
- Maximum wire size: 4 AWG
- Length: 6'6"
- Wire diameter: 9.3 mm
- Weight: 2.65 lb per pair
- Operating temperature: -40° to 185°F (-40° to 85°C)
- Storage temperature: -40° to 257°F (-40° to 125°C)
