Tigo TGM-30 (705-2030H0-0001) GO BMS Kit
Includes BMS, Base, Brackets, Cables
 |
| This item ships free within the 48 contiguous states. |
Tigo TGM-30 (705-2030H0-0001) GO BMS Kit, Includes BMS, Base, Brackets, Cables
Overview

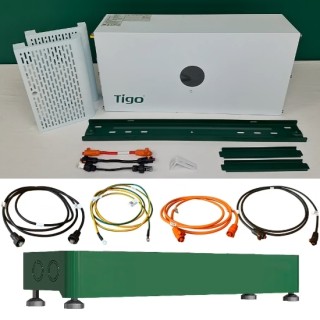

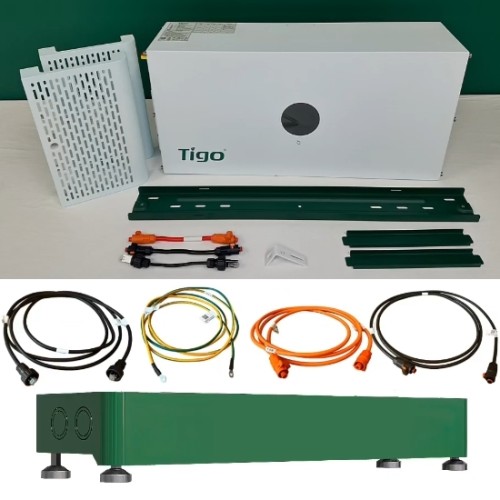

The Tigo TGM-30 (705-2030H0-0001) GO BMS Kit is a GO Battery US BMS Kit for Tigo GO Battery (US) energy storage systems. The kit is identified as model TGM-30 and includes the BMS, base, mounting brackets, and cables.
Designed for scalable home energy storage, the GO Battery (US) system provides energy resilience during grid outages and can optimize energy consumption based on rate plans. The system works with the Tigo EI Inverter and ATS and is modular in 5 kWh steps up to 30 kWh total capacity.
The GO Battery system uses Lithium Iron Phosphate (LFP) chemistry, and the TGM-30 BMS module is specified with a 32A maximum current, 380V-550V input voltage range, and RS485 communication port. The built-in Battery Management System balances cells, provides continuous monitoring, and protects against over/under-voltage, over-current, and temperature extremes.
Features
- BMS kit for the GO Battery (US) energy storage system
- Supports GO Battery systems using Lithium Iron Phosphate (LFP) battery chemistry
- Supports modular energy storage in 5 kWh steps, up to 30 kWh total system capacity
- Works with the Tigo EI Inverter and ATS as part of the GO Battery system
- GO Battery system provides energy resilience during grid outages and optimizes energy consumption based on rate plans
- Simple installation approach with only 3 color-coded connections per module
- RS485 communication port with 380V-550V input voltage range
- IP66 ingress protection for the GO Battery system
Specifications
- MPN: 705-2030H0-0001
- Model number: TGM-30
- Kit: GO Battery US BMS Kit
- Includes BMS, base, mounting brackets, and cables
- Maximum current: 32A
- Input voltage range: 380V-550V
- Power cable to inverter: 8AWG
- Communication port: RS485
- Dimensions: 27.2 x 7.3 x 11.6 in
- Weight: 35 lbs
