Tigo TGB-5 (702-2005H0-0001) GO Battery Module
Lithium Iron Phosphate (LFP), 5kWh, 330-450VDC, 2.5kW Continuous, 3.5kW Peak, 110Lbs
 |
| Flat rate shipping within the 48 contiguous states. Check your cart for the total. |
Tigo TGB-5 (702-2005H0-0001) GO Battery Module, Lithium Iron Phosphate (LFP), 5kWh, 330-450VDC, 2.5kW Continuous, 3.5kW Peak, 110Lbs
Overview

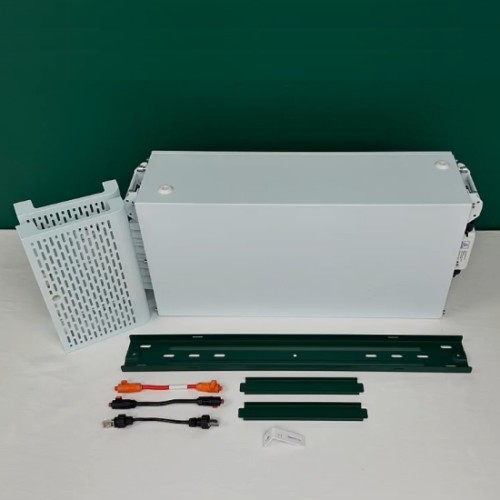

The Tigo TGB-5 (702-2005H0-0001) GO Battery Module is a 5 kWh GO Battery US Module Kit for Tigo GO Battery (US) energy storage systems. The kit is identified as model TGB-5 and includes the battery module, cables, and mounting bracket.
Designed for scalable residential energy storage, the GO Battery (US) system provides energy resilience during grid outages and can optimize energy consumption based on rate plans. The system works with the Tigo EI Inverter and ATS and is modular in 5 kWh steps up to 30 kWh total capacity.
The module uses Lithium Iron Phosphate (LFP) chemistry and is specified with a 330V-450V operating voltage range. GO Battery systems use a Battery Management System to balance cells and protect against over/under-voltage, over-current, and temperature extremes.
Features
- 5 kWh battery module for the GO Battery (US) energy storage system
- Lithium Iron Phosphate (LFP) battery chemistry
- Supports modular energy storage in 5 kWh steps, up to 30 kWh total system capacity
- Works with the Tigo EI Inverter and ATS as part of the GO Battery system
- GO Battery system provides energy resilience during grid outages and optimizes energy consumption based on rate plans
- Simple installation approach with only 3 color-coded connections per module
- GO Battery system BMS balances cells and protects against over/under-voltage, over-current, and temperature extremes
- IP66 ingress protection for the GO Battery system
Specifications
- MPN: 702-2005H0-0001
- Model number: TGB-5
- Kit: GO Battery US Module Kit, 5kWh
- Includes battery module, cables, and mounting bracket
- Nominal energy: 5 kWh
- Operating voltage range: 330V-450V
- Battery type: Lithium Iron Phosphate (LFP)
- Dimensions: 27.2 x 7.3 x 11.6 in
- Weight: 110 lbs
