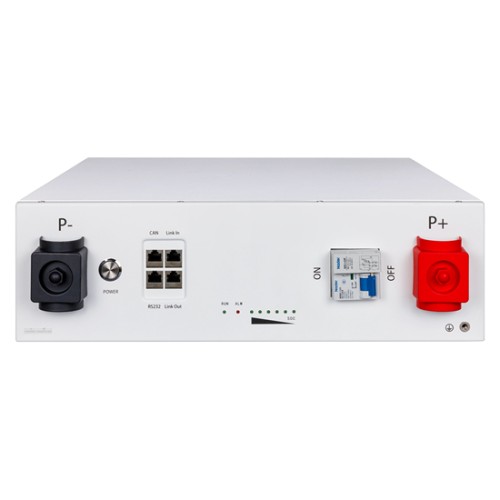

Sol-Max (Midnite Power) PowerFlo5 Battery
Lithium Iron Phosphate (LiFePO4), 5.12kWh, 51.2VDC, 100Ah, CAN/RS485/RS232, Rack Mount, Scalable Up to 20 Units
 |
| Flat rate shipping within the 48 contiguous states. Check your cart for the total. |
Sol-Max (Midnite Power) PowerFlo5 Battery, Lithium Iron Phosphate (LiFePO4), 5.12kWh, 51.2VDC, 100Ah, CAN/RS485/RS232, Rack Mount, Scalable Up to 20 Units
Overview
The Sol-Max (Midnite Power) PowerFlo5 Battery is a modular server rack LFP battery with 5.12kWh energy capacity, 51.2V nominal voltage, and 100Ah nominal capacity. It is designed for rack-mount installations and supports scalable battery capacity in 5kWh building blocks.
PowerFlo5 systems can scale up to 20 units for up to 100kWh total capacity. The battery automatically assigns addresses and communicates with the Sol-Max AIO inverter in closed loop without DIP switch programming.
Each battery can be monitored with the MNpower Assistant app using Bluetooth or optional software. Additional confirmed design and performance features include built-in battery heating, CAN/RS485/RS232 communication interfaces, 6,000-cycle cycle life, and Lithium Iron Phosphate chemistry.
Features
- Modular server rack LFP battery designed for 5kWh capacity increments
- Supports up to 20 units in parallel for up to 100kWh total capacity
- Automatically communicates with the Sol-Max AIO inverter in closed loop
- Automatically assigns battery addresses with no DIP switch programming required
- Can be monitored with the MNpower Assistant app using Bluetooth or optional software
- Built-in battery heating for operation in cold charging conditions
- Battery management system provides multi-level protection
- Complies with UL 1973, UL 9540A, and UL9540
Specifications
- Energy: 5,120Wh / 5.12kWh
- Nominal voltage: 51.2V
- Nominal capacity: 100Ah
- Battery chemistry: Lithium Iron Phosphate (LFP)
- Operating voltage: 46.4~57.6V
- Communication interfaces: CAN/RS485/RS232
- Scalable up to 20 units, up to 100kWh system energy capacity
- Continuous charging power: 75A / 3.84kW; continuous discharging power: 75A / 3.84kW
- Dimensions: 17.7 x 17.4 x 5.2 in. (450 x 444 x 133 mm); weight: 96.5 lb. (43.8 kg)
- IP rating: IP20; environment: Indoor (Type1), non-condensing
