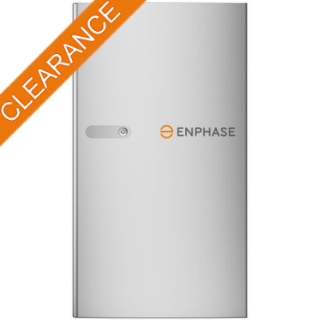

Enphase IQ Battery 5P (IQBATTERY-5P-1P-NA)
5.0kWh Usable Capacity, 240VAC, 3.84kW Continuous, 7.68kVA Peak, NEMA 3R, With Cover and Mounting Bracket
 |  |
 |
Enphase IQ Battery 5P (IQBATTERY-5P-1P-NA), 5.0kWh Usable Capacity, 240VAC, 3.84kW Continuous, 7.68kVA Peak, NEMA 3R, With Cover and Mounting Bracket
The 3rd Generation, All-In-One Battery, AC-Coupled Storage System
The IQ Battery 5P (IQBATTERY-5P-1P-NA) performs two critical functions in your system. First, the battery packs, internal to IQ Battery 5P, store energy for later use, such as during a power outage. Second, the IQ Microinverters in the IQ Battery 5P units provide the voltage and frequency necessary for the operation of your solar while running off the grid. Microinverters convert your harvested energy into usable AC electricity for your house. IThe Q Battery 5P communicates with the IQ Gateway through a wired communication signal. The IQ Battery 5P, all-in-one AC-coupled system is powerful, reliable, simple, and safe. It has a total usable energy capacity of 5.0 kWh and includes six embedded grid-forming microinverters with a 3.84 kVA continuous power rating and a peak output power rating of 7.68kW for 3 seconds and 6.14kW for 10 seconds.
The IQ Battery system includes the battery cell pack with integrated IQ Microinverters and battery management system (BMS). The system requires IQ System Controller 3/3G for grid-tied and backup operations. The IQ Gateway inside IQ System Controller measures PV production, IQ Battery charge/discharge power and home energy consumption, and it senses when it is optimal to charge or discharge the battery so that energy is stored when it is abundant and used when it is scarce.
Enphase Energy Systems with IQ Battery 5P are typically sized to meet one of the following configurations:
- Partial home backup with three smart profiles: Savings profile, Self-Consumption profile, and Full Backup profile.
- Whole home backup with three smart profiles: Savings profile, Self-Consumption profile, and Full Backup profile.
- Solar + Battery (no backup) with one smart profile: Self-Consumption profile.
Includes
- (1) IQ Battery 5P Base Unit
- (1) IQ Battery 5P Cover
- (1) Wall Mounting Bracket
NOTE: Please check the Compatibility Matrix and System Planning Guide Tech Brief under the Documents tab to ensure you purchase the correct items for a successful system.
Features
Powerful
- Provides 3.84 kVA continuous and 7.68 kVA peak power
- Doubles the available power per kWh of prior generations of IQ Battery 5P
- Includes six embedded IQ8D-BAT Microinverters
Reliable
- 15-year limited warranty
- Cools passively with no moving parts or fans
- Uses wired communication for fast and consistent connection
- Updates software and firmware remotely
Simple
- Fully integrated AC battery system
- Installs and commissions easily
- Supports Backup, Self-Consumption, and time-of-use (TOU) modes
- Offers homeowners remote monitoring and control from the Enphase App
- Field replaceable components
Safe
- Tested to meet UL 9540A, the highest industry standard for battery safety
- Uses lithium iron phosphate (LFP) chemistry for maximum safety and longevity
Additional Equipment (Sold Separately)
- IQ Series Microinverters
- System Controller 3/3G
- IQ™ Combiner 5/5C
- Communications Kit 2
- IQ Load Controller
- Cell Modem
- Consumption CT
- Circuit Breaker
- Floor Mount Pedestal
- IQ Battery 5P Lifting Handles
- Control Cable
IQ Battery 5P and System Components Introduction
