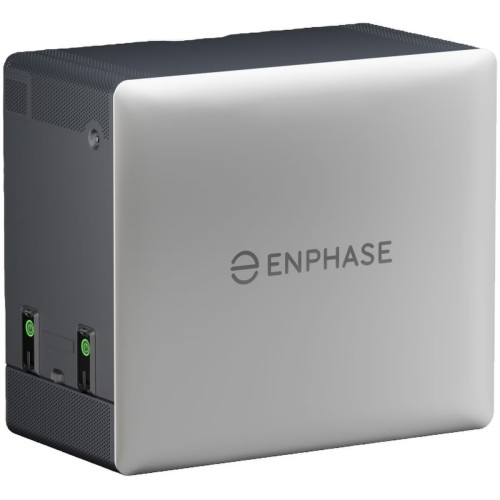

Enphase IQ Battery 10C (IQBATTERY-10C-1P-NA)

Enphase IQ Battery 10C (IQBATTERY-10C-1P-NA), 10.0kWh Usable Capacity, 120/240VAC, 7.08kW Continuous, 14.16kVA Peak, NEMA 3R, With Mounting Brackets and Cover

The Newest Enphase Storage Solution - When the grid is down, you have power and when the grid is up, you can save money.

An all-in-one, AC-coupled storage system, the IQ Battery 10C (IQBATTERY-10C-1P-NA) integrates 240V and 120V microinverters, providing backup functionality and removing the need for additional neutral-forming hardware. It provides a total usable energy capacity of 10 kWh and delivers 7.08 kW of continuous power, easily supporting heavy loads such as HVAC units and pool pumps. Its compact design requires less wall space while offering double the capacity of previous models. The system uses lithium iron phosphate (LFP) chemistry, which is cobalt-free. The battery is UL 9540A certified for safety and reliability. A modular architecture allows for easy expansion as energy needs evolve.

IQ Battery 10C also supports flexible installation with wall bracket and floor pedestal options. Thanks to its distributed architecture, even in the rare event that a microinverter experiences an issue, power continues to flow seamlessly—keeping your home running and your essentials protected. Supported by a 15-year limited warranty (6,000 cycles), the IQ Battery 10C offers dependable performance for both everyday energy management and backup.

The IQ Battery 10C system includes the battery cell pack with integrated IQ Microinverters (IQ8BL, IQ8BN) and the battery management system (BMS). The system requires IQ Combiner 6C and IQ Meter Collar for the backup operation. The IQ Gateway inside the combiner measures PV production, IQ Battery 10C charge/discharge power, and home energy consumption, and it senses when it is optimal to charge or discharge the battery so that energy is stored when it is abundant and used when it is scarce.

Enphase Energy Systems with IQ Battery 10C are typically sized to meet one of the following configurations:

• Partial home backup with three smart profiles: AI Optimization, Self-Consumption profile, and Full Backup profile.
• Whole home backup with three smart profiles: AI Optimization, Self-Consumption profile, and Full Backup profile.
• Solar + Battery (no backup) with one smart profile: Self-Consumption profile.

Includes

• (2) IQ 10C Battery Units (B05-C01-US00-1-3)
• (2) Mounting Brackets
• (1) IQ Battery 10C Cover (B10C-NC-0708-O)

NOTE: Please check the Compatibility Matrix and System Planning Guide Tech Brief under the Documents tab to ensure you purchase the correct items for a successful system.

Features

• Fully integrated AC battery system
• High energy density design taking up less wall space
• 120V microinverters eliminate the need for additional neutral-forming hardware
• Easily scalable system (10 kWh to 80 kWh)
• Supports up to 90A LRA to start demanding loads effortlessly
• Cools passively with no moving parts or fans
• Uses wired communication for fast and consistent connection
• Field-replaceable components enable in-place repairs without battery replacement
• Stable lithium iron phosphate (LFP) chemistry for maximum safety and longevity
• Quick and easy plug-and-play installation
• Remote monitoring and intelligent battery profiles from the Enphase App

Additional Equipment (Sold Separately)

• IQ Series Microinverters
• IQ Meter Collar (MC-200-011-V01)
• IQ™ Combiner 6C (X-IQ-AM1-240-6C)
• IQ System Controller 3M (SC200D111CMC1US01)
• Communications Kit 2 (COMMS-KIT-02)
• Breakers (40A for 1 IQ Battery 10C or 80A for 2 IQ Battery 10C)
• Floor Mount Pedestal (B05C-PI-0550-O)
• IQ Battery 10C Lifting Handles (B05C-LH-O180-O)
• Control Cable (CTRL-SC3-NA-01)

Introducing the Enphase Energy IQ Battery 10C
